Installation

On your touchscreen device:

Please install 757 Wireless CDU for Android BEFORE you purchase '757 Connect' to make sure you are satisfied with general appearance of application at your device.

On your Windows computer:

You have to puchase and install 757 Connect to get access to Flight Simulator FMC data. Download, run the installer and follow installation instructions.

Bonjour Services for Windows will be installed alone with '757 Connect' installation.

Note:

- 757 Captain (757-200) Base Pack latest version for FSX or latest version for Prepar3D v4 must be installed on your computer.
- Setup procedures and security settings vary depending on your OS version and your device.

Usage

On your Windows computer:

1) Run FSX / Prepar3D v4
2) Load 757 Captain

On your touchscreen device:

3) Run 757 Captain CDU on your device(s)
4) In few seconds your device will be connected to the #1 (captain side) 757 CDU automatically in your local Wi-Fi network.
5) You can use up to 5 devices simultaneously

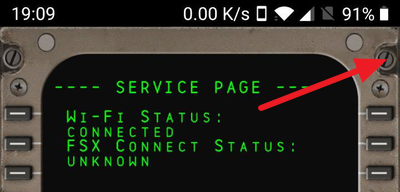

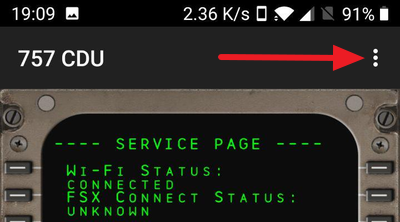

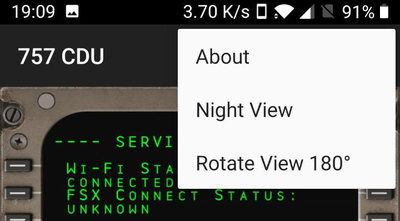

Menu: Night view and Rotate screen 180° for Android devices

Touch right upper screew on the CDU and use menu item to switch Day/Night view or rotate display:








Notes (click to expand)

Network troubleshooting:

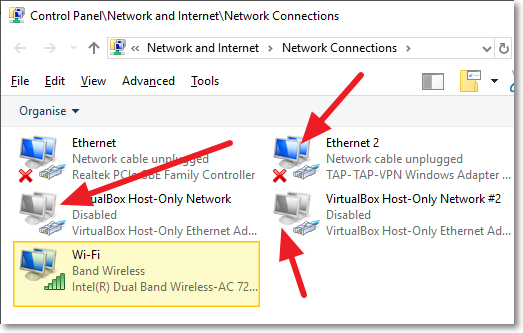

Open Control Panel/Network and Internet/Network Connections
If you use network connections as for virtual machines, VPN, or several network connections, please disable them and leave your primary Wi-Fi network connection.




If you have no Bonjour Print Services or do not want to install it, on your Android devices you can do the following:

1) Make sure WiFi on your device is turned on and your computer is connected (wire or wireless) to your home router.

2) Run FSX or Prepar3D and 757 Captain.

3) Go to FSX or Prepar3D menu, click:
Add-ons -> 757 Connect -> show IP:Port and get IP address and port

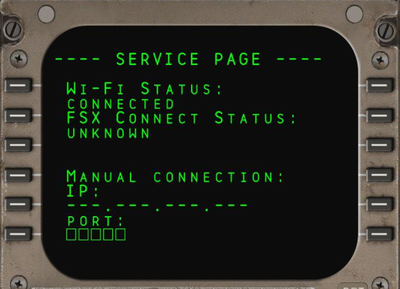

4) Run 757 Wireless CDU at your device, you will see the SERVICE PAGE:

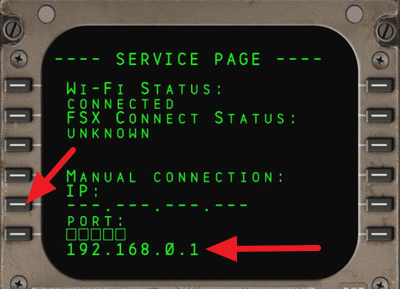

5) Enter IP address at your device and press 5L button

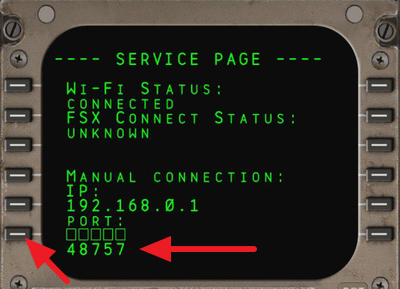

6) Enter port number at your device and press 6L button



- To erase one symbol in the scratchpad - press CLR button.

- To erase IP address - press DELETE button and 5L button

- To erase Port number - press DELETE button and 6L button


7) Press EXEC button and 757 Wireless CDU will be connected to Flight Simulator.




Enjoy your flight!
